Thursday, July 23, 2009

Coming along

Wow... things are going slow tonight. It took me about an hour just to upload the pictures for this post. YIKES... Since I'm running on borrowed time, I'll be quick :)

Several things are going on all at the same time right now (imagine that). First, Engineeringland is starting to fill up more and more. It's getting harder to see through the racks. But that's a good thing!

Engineering Racks


Close up of what will be our video shading (camera matching) station.
The match monitor is up top and the CCUs are down below.


Something I think is amazing is the size of the video switcher's brains. The previous switcher took up the better part of a full rack (roughly 6.5 feet tall), and now it's shoved down into a 3RU box (about 5.25 inches tall). There is a tally display controller that is about the same size. Overall, I'm impressed by the size of the unit!

Switcher "Brains" are highlighted.

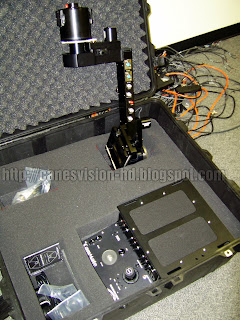

Another nifty item that came in today is the Robotic camera head and controller. I referenced this in a much older post, but it's finally here. I can't wait to see it in action. Fast, HD game coverage from right above center ice. Sweet!

Nice case... too bad the mount will go under the Megatron and never go back in there!
I'm sure we can find something to store in here. Whatever it is will stay watertight ;)


The camera controller that will live in the Control Room.
This box was custom built for CanesVision.


Note the finishing touch of the Canes logo in the corner ;)


And finally, the some of the monitor wall monitors were un-crated today. DSI is waiting on some extra fiber connectivity to get signal run to the wall, but they started putting it together today!

Staging in the hall.


It's a long way to the top...


One is better than none ;)


On a side note: sorry to any of you that were expecting the Megatron to be active during Select-A-Seat. There were plans to use it, but Daktronics had to come back and resolve some power issues. The boards were off most of the day today and may be off quite a bit tomorrow, as well.

Hopefully soon we can start to post some more images of the board clad in Canes & NC State garb, but know (a) we aren't going to tip our hand too much on what's to come in the season and (b) we're busy rebuilding stuff from the ground up so it may be a couple of weeks :)

Thanks to all who are keeping tabs on us. We are still just as excited as you are!
